Panamax MR4000 8-Outlets Surge Protector Home Theater Power Management

SKU PAN-MR4000

Sorry, this product has been discontinued.

Panamax MR4000 8-Outlets Surge Protector Home Theater Power Management

8 Protected and Filtered Power Outlets
Exclusive Automatic Voltage Monitoring (AVM)
Protect or Disconnect Technology
Panamax Level 2 Noise Filtration
Antenna, Cable or Satellite and LAN Signal Protection
8 ft. Power Cable with Long Profile Plug

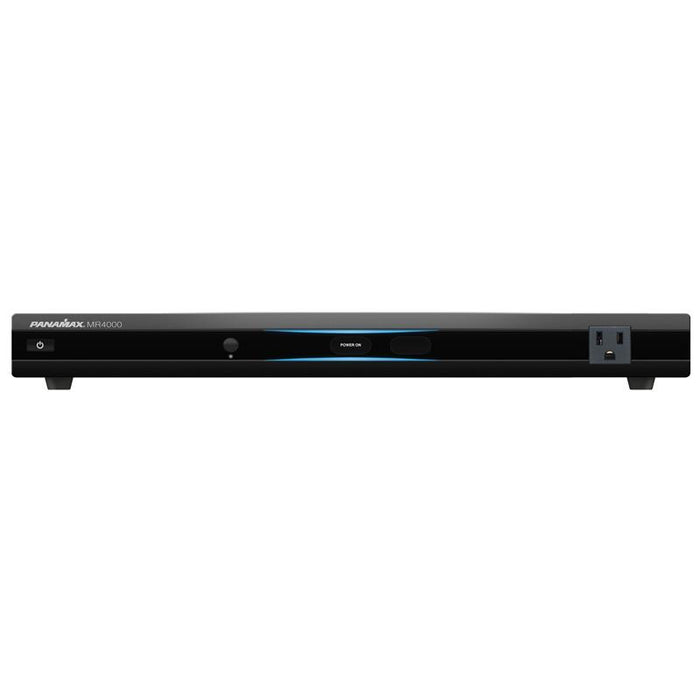

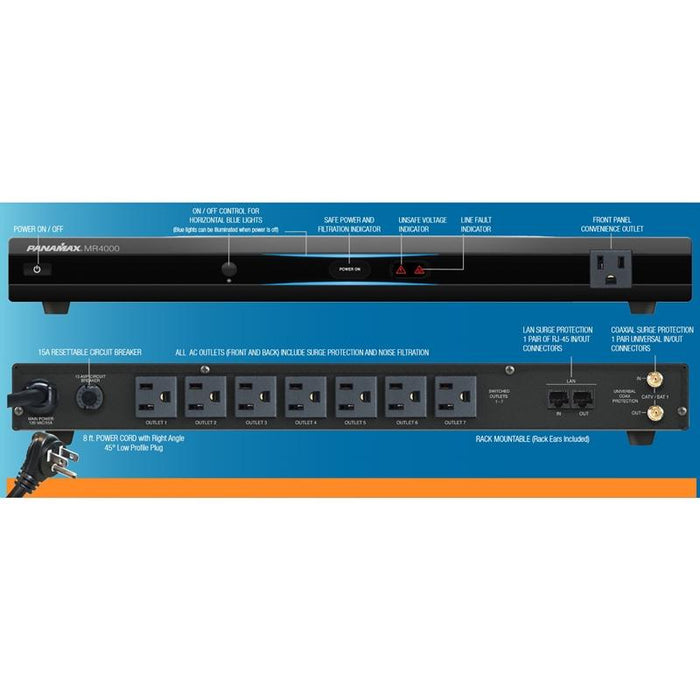

Front Panel Features
Power ON/OFF for all outlets
Safe Power and Filtration Indicator
ON/OFF Control for horizontal blue lights (blue lights can be illuminated when power is off)
Unsafe Voltage Indicator normally OFF; when lit, indicates that incoming voltage is unsafe and the surge protector has disconnected the power to protect your equipment.
Line Fault Indicator normally not lit. However, if it is lit call a licensed electrician for proper and safe wiring for your wall outlet.

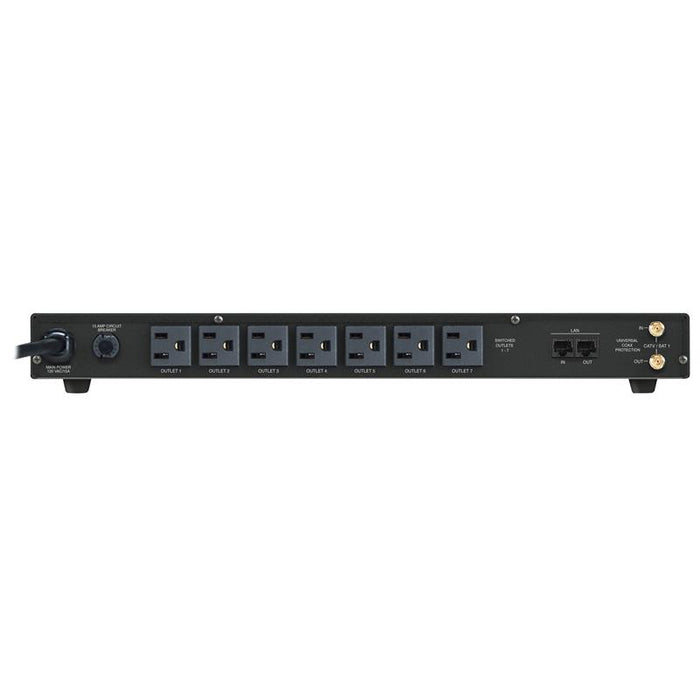

Back Panel Features
8 ft. Power Cord with Right Angle 45 degrees Low Profile Plug
15A Resetable Circuit Breaker
LAN Surge Protection 1 Pair of RJ-45 IN/OUT Connectors. The protection circuit will only function if connected properly. (IN from wall outlet and OUT to equipment)
Coaxial Surge Protection 1 Pair Universal IN/OUT Connectors
All AC Outlets (Front and Back) include surge protection and power filtration
Rack Mountable. Rack Ears not included (sold separately)

AC Protection
Protect or Disconnect Circuitry: Yes
Patented Power Management Circuit: Yes
Overvoltage Shutoff: 140V +-4
Undervoltage Shutoff: 95V +-3
Thermal Fusing: Yes
Line Voltage: 120VAC, 50/60Hz
Initial Clamping Level: 200V Peak, 141V RMS
Voltage Protection Rating (UL 1449 3rd Edition, 3,000A): 400V
Proteciton Modes: L-N, L-G, N-G
Maximum Current Rating: 15A (1800W)
EMI/RFI Noise Filtration: Panamax Level 2 Noise Filtration*
Response Time: <1ns
Single Pulse Energy Dissipation: 1350 Joules
Peak Impulse Current: 52,000A

Lan Protection
Clamping Level:
50V
Compatibility: 10/100bT
Wires Protected: 8-Wires
Connectors: RJ-45

Universal Coaxial Protection
HD 1080 i/p Ready:
Yes
Bidirectional: Yes
Shielded: Yes
Clamping Level: 75V
Frequency Range: 0MHz - 2.2 GHz
Insertion Loss: <0.5 dB
Connections: Female "F". Gold Plated
