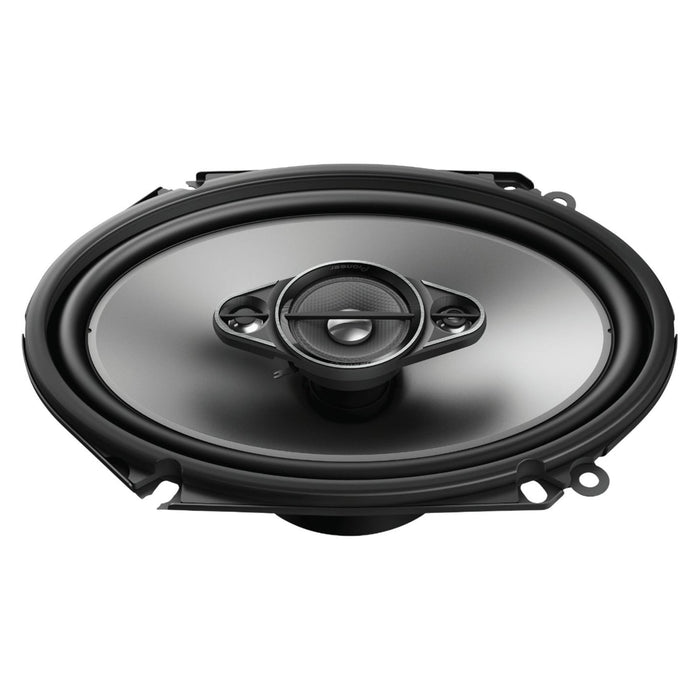

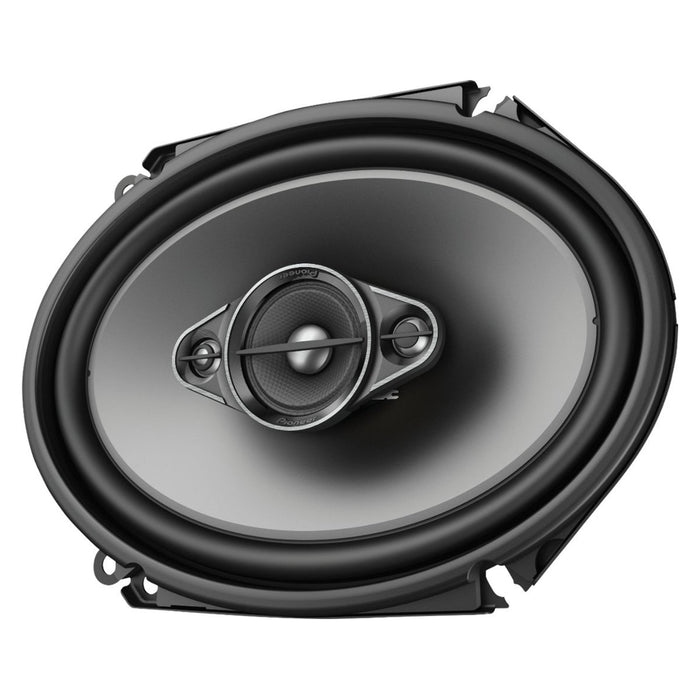

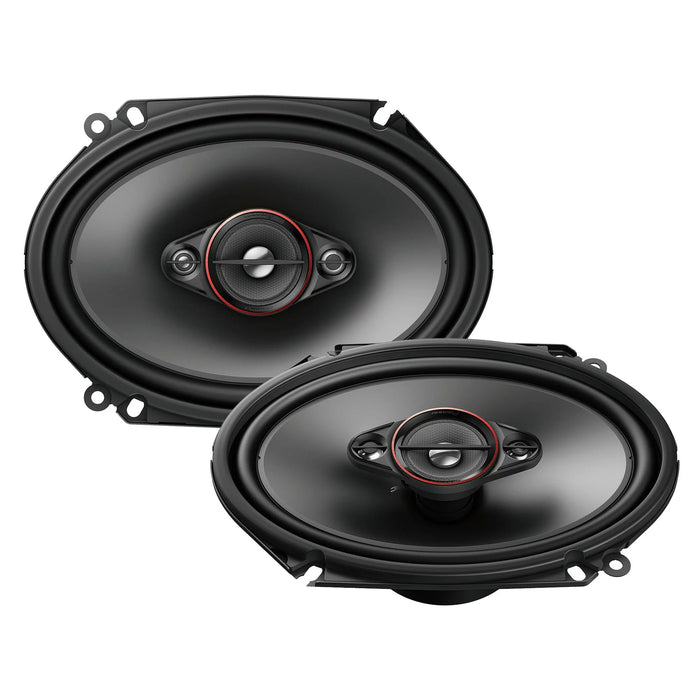

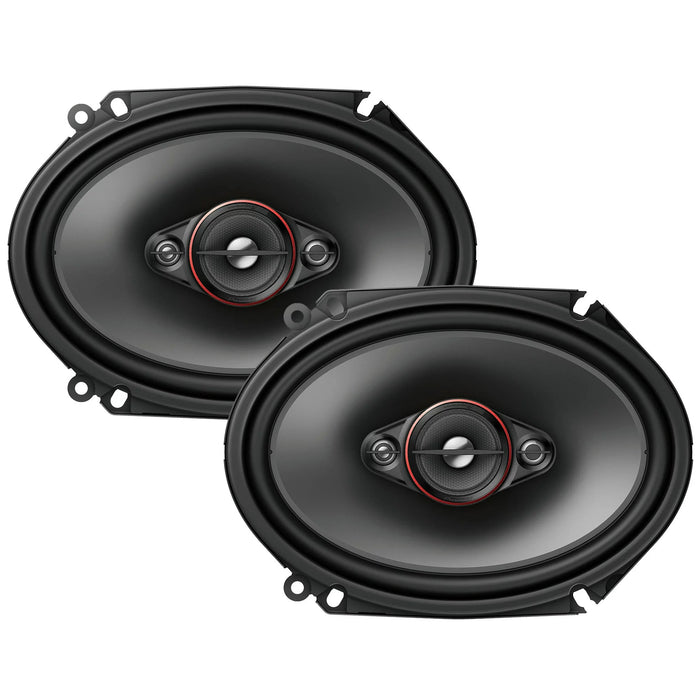

Pioneer TS-800M 6" x 8" inch 4-Way 350W Max Power Coaxial Speakers (Pair)

Availability:
in stock, ready to be shipped
SKU PIO-TS-800M
Sale Sale

6" x 8" - 4-way 350 W Max Power, 11mm Tweeter and 11mm Super Tweeter and 1-5/8" Cone Midrange - Coaxial Speakers (pair)

The Pioneer A Series 6" x 8" 4-way coaxial speakers are a powerful addition to your car audio system. These speakers deliver impressive sound quality with a maximum power output of 350W. The 11mm tweeter, 11mm super tweeter, and 1-5/8" cone midrange combine to produce dynamic, high-impact bass and smooth sound transitions. Designed for seamless integration with subwoofers and full-range loudspeakers, these custom-fit speakers offer uniform off-axis frequency response, making them ideal for automotive applications. The included multi-fit installation adapters and tweeter mounts ensure easy installation, while the Pioneer CarSoundFit app allows you to experience enhanced sound quality virtually. Upgrade your car audio effortlessly with these speakers, optimized for select vehicles.

  • 350W max power / 80W RMS per speaker
  • 11mm Tweeter and 11mm Super Tweeter
  • 1-5/8" cellulose fiber cone midrange
  • 6" x 8" carbon and mica reinforced Injection Molded Polypropylene (IMPP) cone construction
  • Custom-fit design for simple and easy installation in both 6" x 8" and 5" x 7" applications
  • Lightweight elastic polymer surround
  • Heat-resistant voice coil

SPECIFICATIONS:

System

  • System Type: 4-way coaxial
  • Sound Pressure Level (Sensitivity): 88dB (+- 1.5dB)
  • Frequency Range: 34 Hz to 34 kHz
  • Continuous Power Handling (RMS): 80 Watts
  • Maximum Peak Power Handling: 350 Watts
  • Nominal Impedance: 4 ohms

Woofer

  • Diameter: 6" x 8"
  • Cone Material: IMPP - Composite
  • Surround Material: Elastic polymer
  • Basket Material: Stamped Metal
  • Magnet Material: Ferrite
  • Magnet Weight: 7.8 oz
  • Mounting Depth: 2-1/2"

Tweeter

  • Type: Cone
  • Diameter: 1-5/8"
  • Diaphragm Material: Cellulose fiber
  • Magnet Material: Ferrite
  • Magnet Weight: 0.7 oz
  • Crossover Frequency: 5000 Hz (Acoustic)/4600 Hz (Electric)
