These 5-1/4" coaxial speakers deliver rich bass, clear highs, and balanced sound with carbon and mica-reinforced IMPP cone construction and a 3-way design2. They also feature Pioneer’s OPEN & SMOOTH sound concept, which ensures a seamless transition between the midrange and tweeter drivers and delivers uniform off-axis frequency response34. Whether you want to rock out to your favorite tunes, enjoy a relaxing podcast, or immerse yourself in a thrilling audiobook, the Pioneer A-Series speakers will make every drive more enjoyable. Upgrade your car’s audio system today with the Pioneer A-Series speakers.
SYSTEM
System Type: Coaxial 3-Way
Sound Pressure Level (Sensitivity): 89 dB (+- 1.5dB)
Frequency Range: 44 Hz to 52 kHz
Continuous Power Handling (RMS): 50 Watts
Maximum Peak Power Handling: 300 Watts
Nominal Impedance: 4 ohms
WOOFER
Diameter: 5-1/4"
Cone Material: Carbon and mica reinforced IMPP
Surround Material: Elastic Polymer
Basket Material: Iron Plate Press
Magnet Material: Ferrite
Magnet Weight: 7.14 oz
Voice Coil Bobbin: Glass Imide
Voice Coil wire: Copper

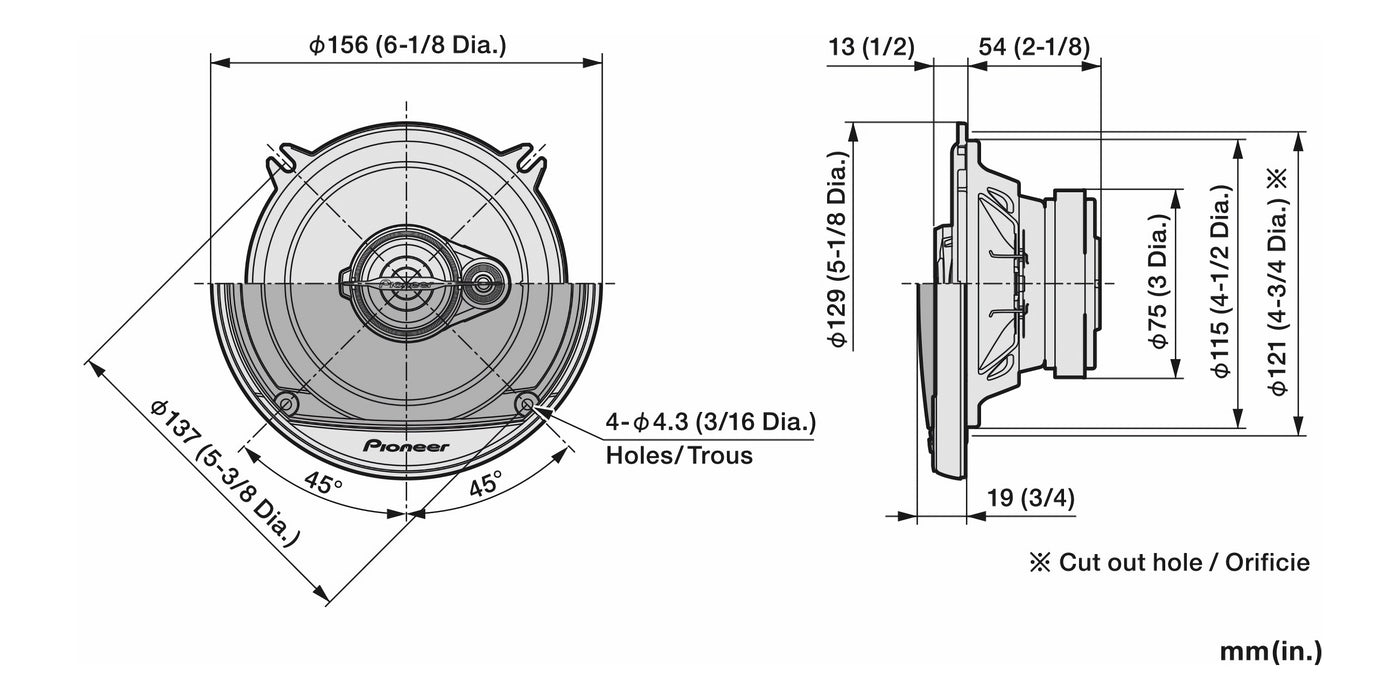

Mounting Depth: 2-1/8" (Deep basket)
TWEETER
Type: Polyethylene terephthalate (PET) hard dome
Diameter: 11 mm
Diaphragm Material: Film (PET)
Magnet Material: Neodymium
