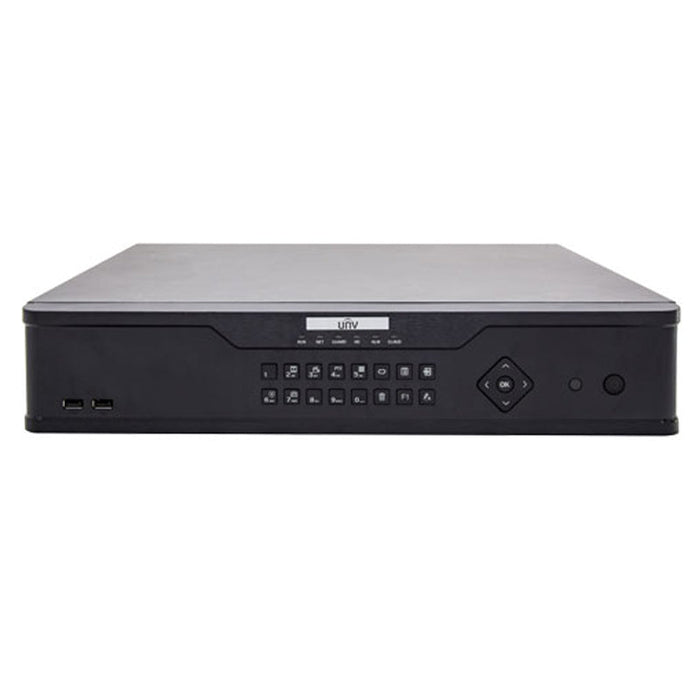

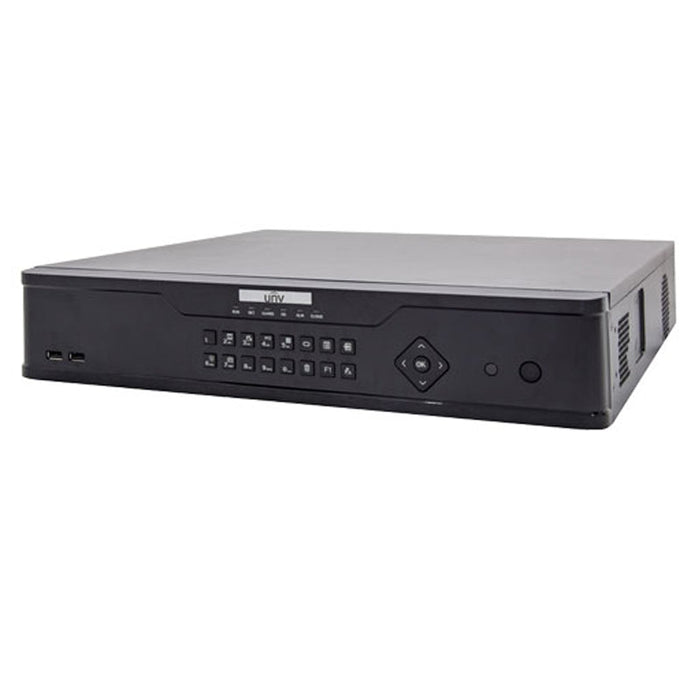

Uniview NVR304-32EP-B 32 Channel NVR IP Network Video Recorder 16 PoE

Uniview NVR304-32EP-B 32 Channel NVR IP Network Video Recorder 16 PoE
SKU UNI-NVR304-32EP-B

Sorry, this product has been discontinued.

Uniview NVR304-32EP-B 32 Channel NVR IP Network Video Recorder 16 PoE

Our NVR304-32EP-B Uniview 32 Channel NVR is a professional IP Network Video Recorder with advanced features. Ultra265 technology combines U-Code and H.265 to reduce storage space and enhance image quality cutting storage costs by 75% or more! This NVR has (4) SATA Bays and accepts up to 10TB each bay for a total of 40TB of storage. In addition, it accepts 32 IP Cameras up to 4K, 12MP Resolution. Uniview NVR’s are ONVIF compliant with profiles S, G, and T, so third-party cameras are supported. Even better, ANR Technology and Dewarp are also standard on the NVR304-32EP-B. This unit has a Built-in 16 Channel PoE for streamlined installation. Other great features such as a quieter fan, and IEC power cord show UNV’s attention to detail and customer satisfaction. A favorite of our dealers and installers due to reliability and ease of use.

EZStation Video Management Software
Unified management for Uniview’s IP cameras, NVRs, hybrid NVRs, network keyboards, decoding devices and more. Device Management and diverse features.

EZView Mobile App
View from anywhere via Mobile Device with our Free EZView Mobile App for Android and iOS. Uniview NVR’s support Mobile Client, Push Alerts, Email Notifications and P2P

ANR (Automatic Network Redundancy)
The NVR304-32E-B supports ANR (Automatic Network Redundancy). UNV cameras with MicroSD Card Slot, can automatically store video recordings into camera’s SD card when the network is disconnected. Once the network is restored, the video recordings will be sent back to storage server. Thus, all of video recordings would be saved even network fails temporarily.

Take IP to the Next Level with Uniview
Uniview NVR’s are packed with advanced features and are extremely user-friendly. UNV has become the choice for many of our Dealers and Integrators due to ease of use and low failure rates. Uniview has completed major projects around the globe and is the perfect choice for a broad range of surveillance applications.

Note: Uniview NVR will work as plug and play with Uniview Cameras only , for other IP cameras network setup is required. Hard drive not included

HDD Storage Sold Separately:
• 2TB Surveillance HDD
• 4TB Surveillance HDD

Features:

  • Support Ultra 265/H.265/H.264 video formats
  • 32 channel input
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
  • Support 2ch HDMI, 1-ch VGA, HDMI2 at up to 4K (3840 x 2160 Resolution)
  • HDMI1/VGA and HDMI2 independent outputs provided
  • Audio Support
  • Up to 12MP resolution recording
  • 4 SATA HDD up to 10 TB each (40TB Storage)
  • Support cloud upgrade
  • Supports Redundant Recording
  • 12VDC Power Output supported
  • Various fisheye dewarping modes for live view and playback for both web interface and GUI
  • ANR technology to enhance the storage reliability when the network is disconnected
  • P2P, UPnP, NTP, DHCP, PPPoE
  • Bandwidth: Incoming 320 Mbps / Outgoing 320 Mbps


Specification:

Video/Audio Input

  • IP Video Input: 16-ch
  • Two-way Audio Input: 1-ch, RCA

Network

  • Incoming Bandwidth:320Mbps
  • Outgoing Bandwidth:320Mbps
  • Remote Users: 128
  • Protocols: P2P, UPnP, NTP, DHCP, PPPoE

Video/Audio Output

  • HDMI1/VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
  • HDMI2: 4K (3840x2160)/60Hz, 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz,
  • 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
  • Recording Resolution: 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
  • Audio Output: 1-ch, RCA
  • Synchronous Playback: 16-ch
  • Corridor Mode Screen: 3/4/5/7/9/10/12/16 / 3/4/5/7/9/10/12/16/32

Decoding

  • Decoding format: Ultra 265, H.265, H.264
  • Live view/Playback 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
  • Capability: 3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080p@30 / 3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080p@30, 32 x 960p@25
  • Hard Disk

SATA: 4 SATA interfaces
Capacity: up to 10TB for each HDD

External Interface

  • Network Interface: 1 RJ45 10M/100M/1000M self-adaptive Ethernet Interface
  • Serial Interface: 1 x RS485
  • USB Interface:  Front panel: 2 x USB2.0 / Rear panel: 1 x USB3.0
  • Alarm In: 16-ch
  • Alarm Out: 4-ch
  • Power Output: 12 VDC

PoE

  • Interface: 16 RJ45 10M/100M self-adaptive Ethernet Interface
  • Max Power: Max 30W for single port / Max 200W in total
  • Supported Standard: IEEE 802.3at

General

  • Power Supply: 100~240 VAC
  • Power Consumption: ≤ 20 W (without HDD)
  • Working Environment: -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
