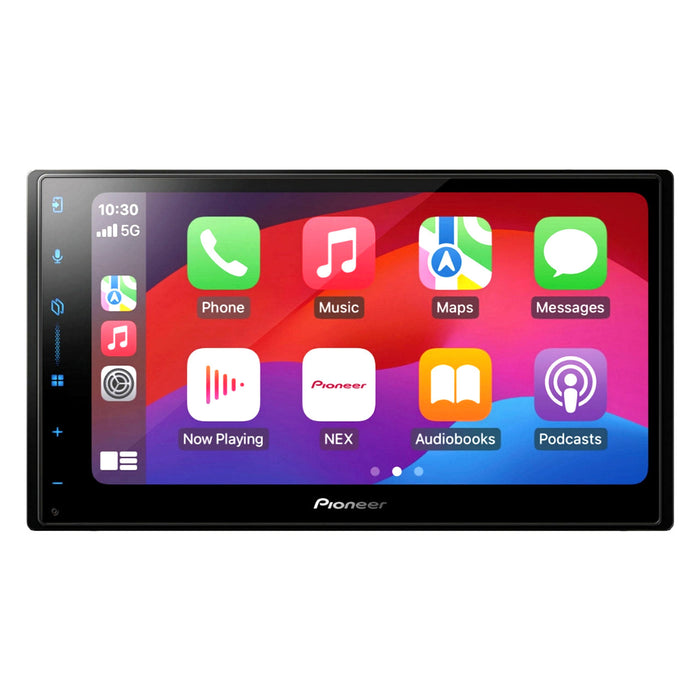

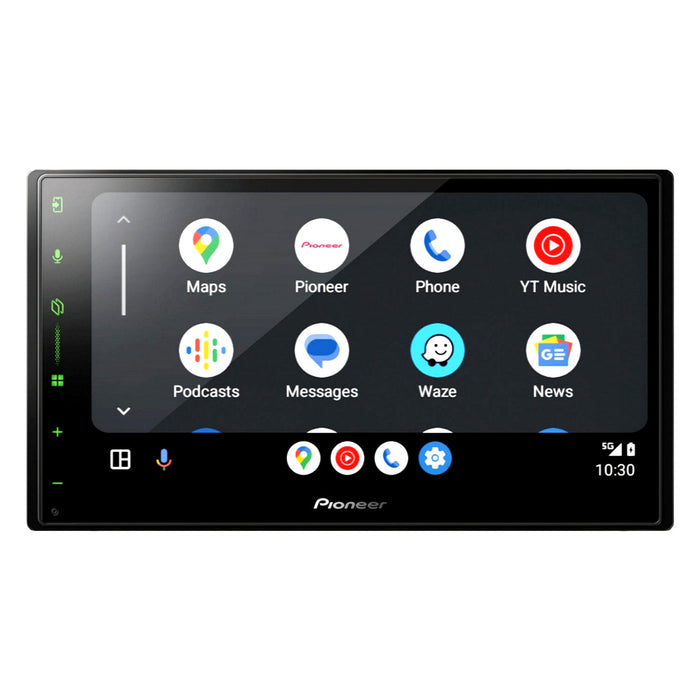

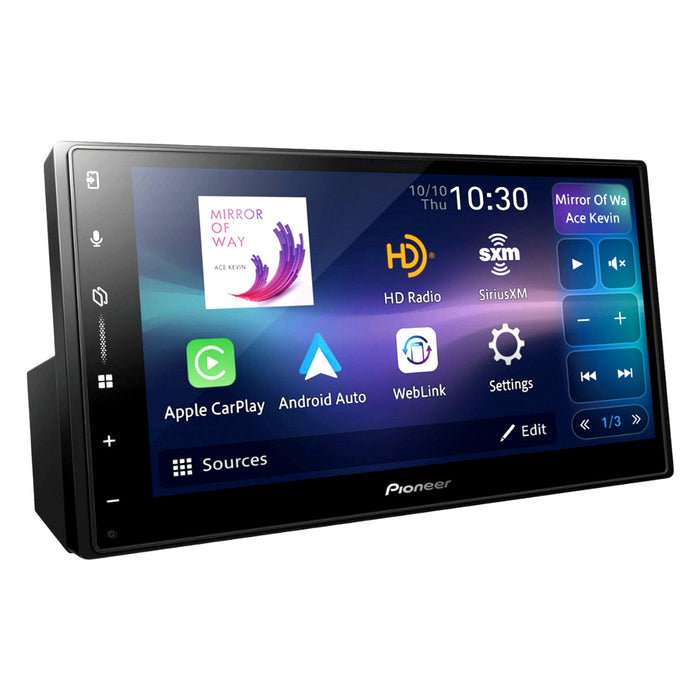

Introducing the Pioneer DMH-W3000NEX, a 6.8-inch display receiver designed for the modern, smartphone-centric lifestyle. This cutting-edge device features a capacitive touchscreen on an L-Shape 1-DIN Chassis, ensuring flexible installation for seamless integration into your vehicle’s dash. With built-in Bluetooth, Android Auto, Apple CarPlay, and WebLink compatibility, this receiver offers unparalleled connectivity options. The new direct access buttons on the left side of the unit minimize distractions, allowing you to make calls, initiate voice actions, and navigate app screens with ease.
Experience a safer, smarter way to use your phone while driving. The DMH-W3000NEX supports both wireless and wired connections, giving you the freedom to choose. Enjoy your favorite maps, media, and messaging apps on the car display, and back up safely with the built-in parking guides and adjustable parking lines. This receiver is designed to enhance your driving experience while keeping you focused on the road. Please read the operation manual and follow all safety instructions to ensure a secure and enjoyable journey.
PERFORMANCE
Continuous Power Output: 22 W x 4-Channel
Load Impedance Allowance: 4 Ohm (4 ohms to 8 ohms Allowable)
Max Power Output: 50W x 4-ch 4 ohms / 50 W X 2-ch 4 ohm
RCA Preamp Outputs: 4V
RCA Pre-out: 6-Channel
RMS Power Output (CTA-2006): 14 W RMS x 4-ch 4 ohms
DISPLAY
Back Light: LED
Brightness Control: Yes
Color Customization: 5 Key Colors
Device (Non-DIN/Modular Unit): 1-DIN “L-Shape” Short Chassis
Dimmer: Yes
Display Off Mode: Yes
Home Screen Customization: Yes
Monitor Mechanism: Fixed
Resolution: WVGA (800 x 480)
Screen Size/Aspect Ratio: 6.8"/16:9
Touch Screen: Capacitive Multi-Touch
NAVIGATION
External GPS Antenna: Yes
BLUETOOTH
Advanced Audio Distribution Profile (A2DP): Yes
AVRCP: 1.6
Built-in Bluetooth®: Yes
Dual Phone Connection: Yes
Hands Free Version: 1.6
Hands-Free: Yes
Microphone Included: Included
Phone Registration: 5 Phones
Secure Simple Pairing (SSP): Yes
Serial Port Profile (SPP): Yes
TUNER
Best Station Memory: Yes
Local Seek tuning: Yes
Presets: 12 FM, 12 AM
PS (Preset Scan): Yes
RDS: RBDS
SiriusXM-Ready™ (Tuner Sold Separately): Yes
INTEGRATION
Amazon Alexa: via Pioneer Vozsis
Android Auto™: Wireless Connection or Wired USB Connection
Apple® CarPlay: Wireless Connection or Wired USB Connection
Mobile Operating System: Android / Apple iOS
Siri® Eyes Free (VR) (Internet Required): iPhone Only
Voice Control: Yes
WiFi: Tethering, WiFi Hotspot
DIGITAL MEDIA PLAYBACK
Audio Playback via USB: WMA/MP3/WAV/AAC/FLAC
Audio Video Playback via USB: H.264/H.263/VC-1/Mpeg4(MP4/AVI)/AVI/ MPEG1,2(PS)/Quick Time/WMV/MKV/FLV/TS
Image Display via USB: BMP, JPEG, PNG
AUDIO
Bass Boost: Yes
Balance: Yes
Built-in Amplifier: MOSFET 50 W x 4
Crossover Network Mode: Yes
Crossover Standard Mode: Yes
Customizable Graphic Equalizer: 13 BAND, 6 PRESET
Fade: Yes
Listening Position Selector: Yes
Loudness: High/Mid/Low/Off
Speaker Output: 4-ch
Subwoofer Control: Yes
EXPANDABILITY
Parking Assist Lines: Yes
INPUTS
Input 1: Backup Camera Dedicated
Input 2: AUX (Minijack)
GENERAL
Detachable Face Security: Fixed
Multi-Language Display: English, French, Spanish Portuguese, Chinese (Simplified)
GPS Antenna: Yes
Remote Control: No
