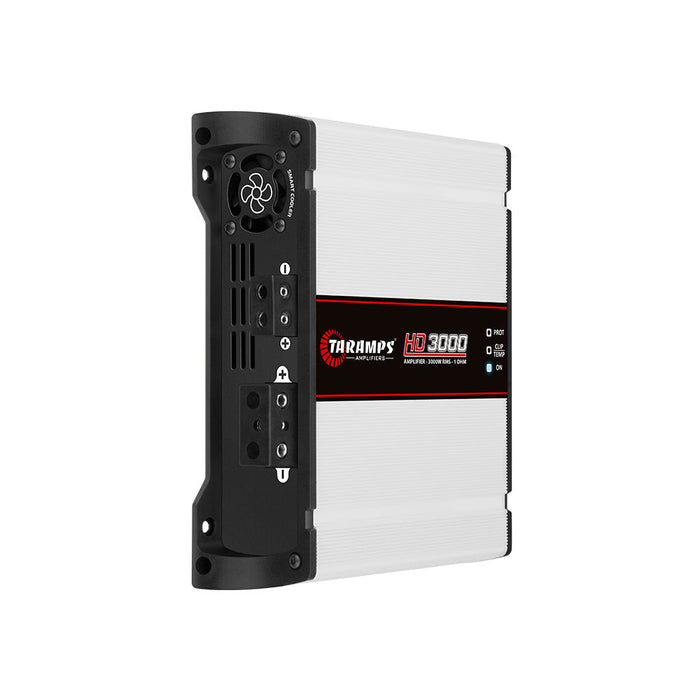

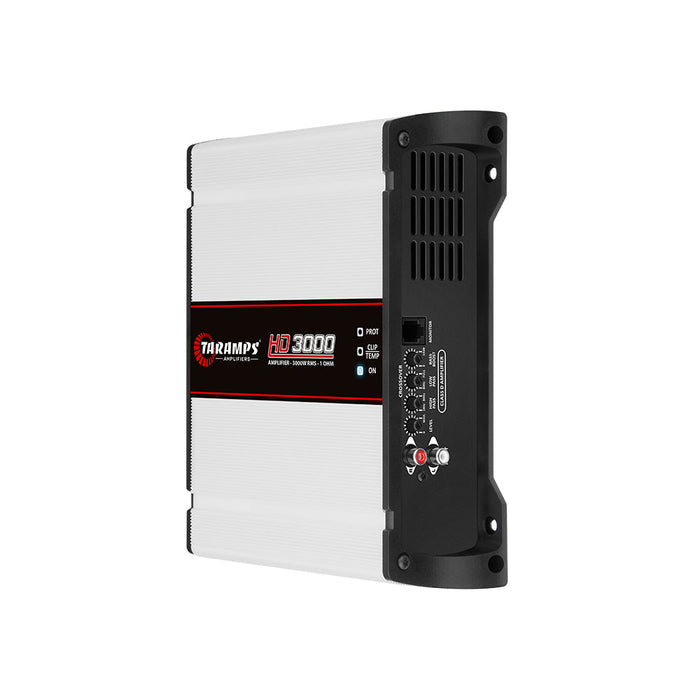

Taramps HD3000-1OHM 1-Channel Class D 3000 Watts 1 Ohms Full Range Car Amplifier

Features:

• OPERATION CLASS    Class D
• NUMBER OF CHANNELS    01
• MAXIMUM POWER    @12.6VDC - 1 Ohm: 3000 Watts RMS
• @12.6VDC - 2 Ohms: 2025 Watts RMS
• @12.6VDC - 4 Ohms: 1140 Watts RMS
• INPUT SENSITIVITY    230mV
• SIGNAL TO NOISE RATIO    89dB
• FREQUENCY RESPONSE    10Hz Hz ~ 20 kHz (-3dB)
• CROSSOVER HIGH PASS (HPF)    10Hz ~ 80 Hz (-12dB/8ª) Variable
• CROSSOVER LOW PASS (LPF)    80Hz ~ Full (-12dB/8ª) Variable
• BASS BOOST    0 ~ 10.5dB (50 Hz)
• THERMAL MANAGEMENT    Smart Cooler (fan controlled by temperature or audio, with 3 speeds)
• EFFICIENCY    79%
• INPUT IMPEDANCE    18K ohms
• OUTPUT IMPEDANCE    1 Ohm
• PROTECTION SYSTEM    Output Short circuit / High or Low supply voltage / Thermal protection
• MIN. SUPPLY VOLTAGE    9 VDC
• MAXIMUM POWER SUPPLY VOLTAGE    16 VDC
• CONSUMPTION AT REST    1.8A
• MAXIMUM MUSIC CONSUMPTION    @12.6VDC: 150.5A
• MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL    @12.6VDC (1kHz): 301A
• DIMENSIONS (WXHXD)    9"x 2.56" x 7.32" (229 x 65 x 186mm)
• WEIGHT    4.4lbs (2kg)
