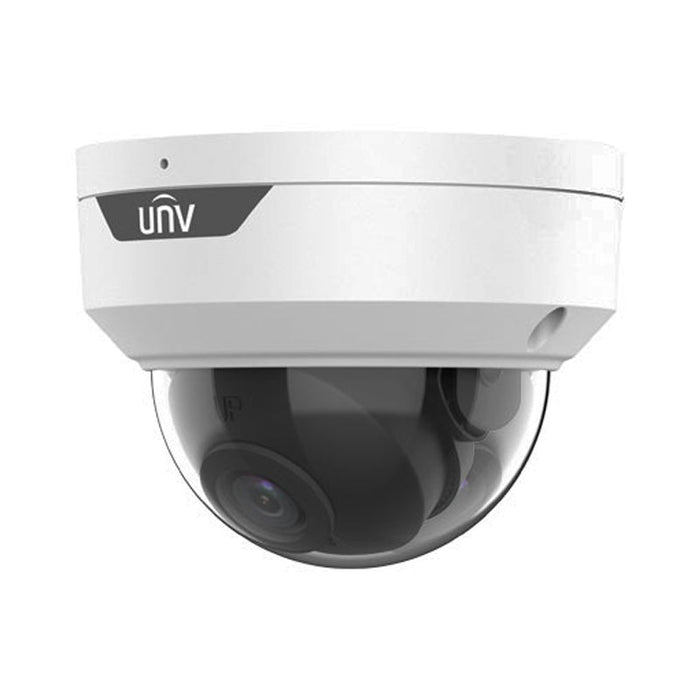

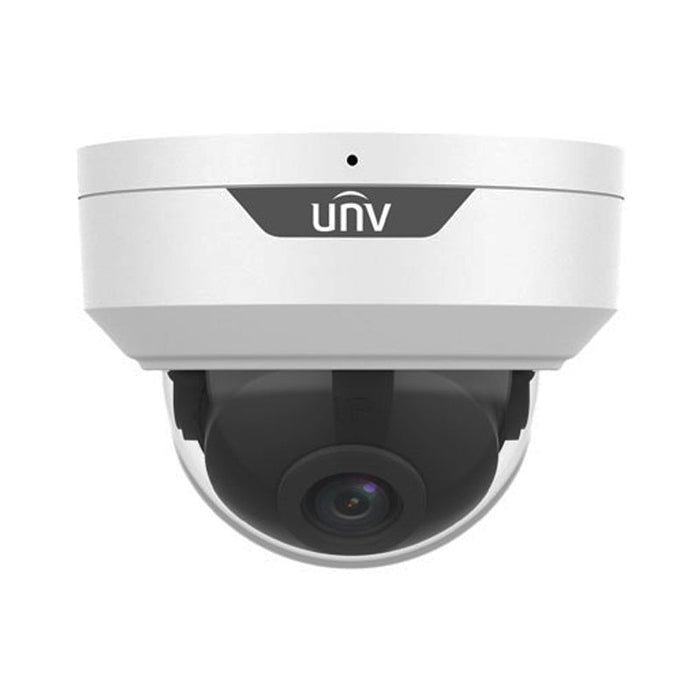

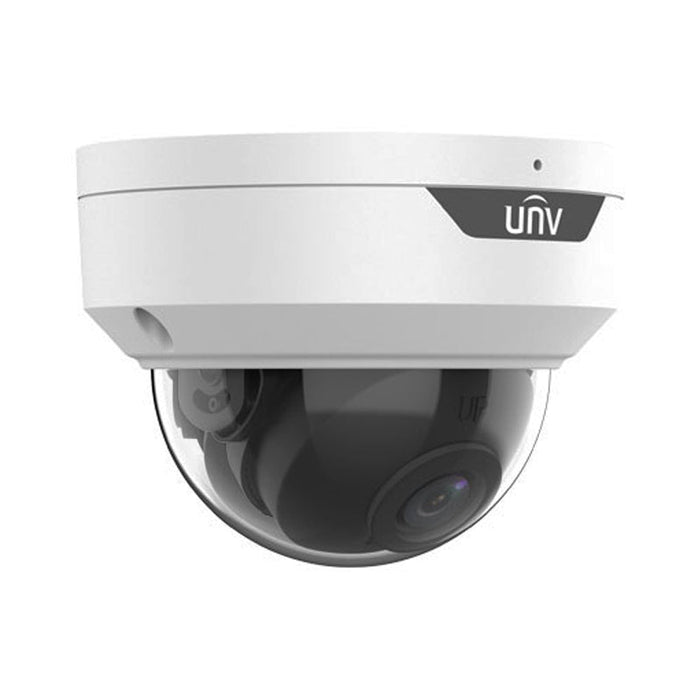

Uniview IPC325SR3-ADF28K-G 5MP Fixed 2.8mm HD Vandal-resistant IR Dome Camera

Uniview IPC325SR3-ADF28K-G 5MP Fixed 2.8mm HD Vandal-resistant IR Dome Camera
Availability:
in stock, ready to be shipped
SKU UNI-IPC325SR3-ADF28K-G

Uniview IPC325SR3-ADF28K-G 5MP Fixed 2.8mm HD Vandal-resistant IR Dome Camera

The IPC325SR3-ADF28K-G is a 5MP IP Vandal Dome Camera from the Uniview Prime Series. This Fixed Dome has a built-in PoE for ease of installation, and up to 100 Feet of Night Vision. With an extreme temperature range of -22°F to +140°F, this IP Camera can handle a variety of harsh environments. Weatherproof ratings on this professional-grade camera are IP67 so you have maximum protection against the elements. Even better, this IP Vandal Dome has an IK10 Vandal Proof Rating for extreme protection against tampering and vandalism. In addition, this IPC325SR3-ADF28K-G Uniview Prime Series Dome has a 2.8mm Wide Angle Lens which has an AOV of 105° for a maximum coverage area. If you need Audio, this Camera has a Built-In Microphone.

This model is compliant with the NDAA (National Defense Authorization Act), meaning it's safe to use and install on U.S. government properties. It was constructed with trusted and reliable technology at its core.

Note: Uniview IP cameras will work as plug and play with Uniview NVRs. For other NVR systems, network setup is required

Features:

  • 5MP, 1/2.7″ CMOS Sensor
  • 5MP, 2880×1620@30FPS
  • High-Performance Day/night functionality with EasyStar
  • Up to 120dB WDR (Wide Dynamic Range)
  • Smart IR, up to 30m (100ft) IR distance
  • Supports 9:16 Corridor Mode
  • Ultra 265, H.265, H.264, MJPEG
  • Supports On-Board recording with MicroSD Card
  • Built-In Mic
  • Customized OSD
  • ONVIF Conformance
  • Wide temperature range: -35°C ~ 60°C (-31°F ~ 140°F)
  • Wide voltage range of ±25%
  • IK10 Vandal Resistant
  • IP67 Waterproof
  • 3-Axis Bracket
  • NDAA Compliant

Specifications

Camera

  • Sensor - 1/2.7", 5.0 megapixel, progressive scan, CMOS
  • Lens - 2.8mm@F1.6
  • DORI Distance - Lens (mm) - 2.8, Detect (m) - 63.0, Observe (m) - 25.2, Recognize (m) - 12.6, Identify (m) - 6.3
  • Angle of View (H) - 112.9°
  • Angle of View (V) - 59.1°
  • Angle of View (O) - 121.2°
  • Adjustment angle - Pan: 3° ~ 360°, Tilt: 0° ~ 68°, Rotate: 3° ~ 360°
  • Shutter - Auto/Manual, 1 ~ 1/100000s
  • Minimum Illumination - Support Easystar: Colour: 0.003Lux ( F1.6, AGC ON), 0Lux with IR on
  • Day/Night - IR-cut filter with auto switch (ICR)
  • Digital noise reduction - 2D/3D DNR
  • S/N - >56dB
  • IR Range - Up to 98ft (30m) IR range
  • Wavelength - 850nm
  • IR On/Off Control - Auto/Manual
  • Defog - Digital Defog
  • WDR - 120dB

Video

  • Video Compression - Ultra 265, H.265, H.264, MJPEG
  • H.264 code profile - Baseline profile, Main profile, High profile
  • Main Stream - Max 30fps @ 5MP (2880 x 1620), Max 30fps @ 4MP (2560 x 1440), Max 30fps @ 3MP (2304 x 1296), Max 30fps @ 1080P (1920x1080)
  • Sub Stream - Max 30fps @ 720P (1280 x 720), Max 30fps @ D1 (720 x 576), Max 30fps @ 640 x 360, Max 30fps @ 2CIF (704 x 288), Max 30fps @ CIF (352 x 288)
  • Video Bit Rate - 128 Kbps~16 Mbps
  • 9:16 Corridor Mode - Supported
  • OSD - Up to 4 OSDs
  • Privacy Mask - Up to 4 areas
  • ROI - Up to 8 areas
  • Motion Detection - Up to 4 areas


  • White Balance - Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
  • Digital noise reduction - 2D/3D DNR
  • Smart IR - Supported
  • Flip - Normal/Vertical/Horizontal/180°/90°Clockwise/90° Anti-clockwise
  • Dewarping - N/A
  • HLC - Supported
  • BLC - Supported

Smart

  • Behavior Detection - (Cross line, intrusion)based on human body detection, motion detection, tampering alarm, audio detection
  • General Function - Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication

Network

  • Protocols - IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, 802.1x, SNMP
  • Compatible Integration - ONVIF (Profile S, Profile G, Profile T), API
  • Client - EZStation, EZView, EZLive
  • Web Browser - Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below, Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+

Storage

  • Edge Storage - Micro SD, up to 256GB
  • Network Storage - ANR, NAS(NFS)

Interface

  • Network - 10/100M Base-TX Ethernet
  • Built-in Mic - Supported

Certifications

  • Certifications - CE: EN 60950-1, UL: UL60950-1, FCC: FCC Part 15

General

  • Power - DC 12V±25%, PoE (IEEE 802.3af)
  • Power consumption - Max 4.5W
  • Dimensions (Ø x H) - Ø4.3” x 3.3” (Φ109mm x 83mm)
  • Net Weight - 0.79lb (0.36kg)
  • Material - Metal + Plastic
  • Working Environment - -22°F ~ 140°F (-30°C ~ 60°C), Humidity: ≤95% RH (non-condensing)
  • Strorage Environment - -22°F ~ 140°F (-30°C ~ 60°C), Humidity: ≤95% RH (non-condensing)
  • Surge Protection - 4KV
  • Ingress Protection - IP67
  • Vandal Resistant - IK10
  • Reset Button - N/A
